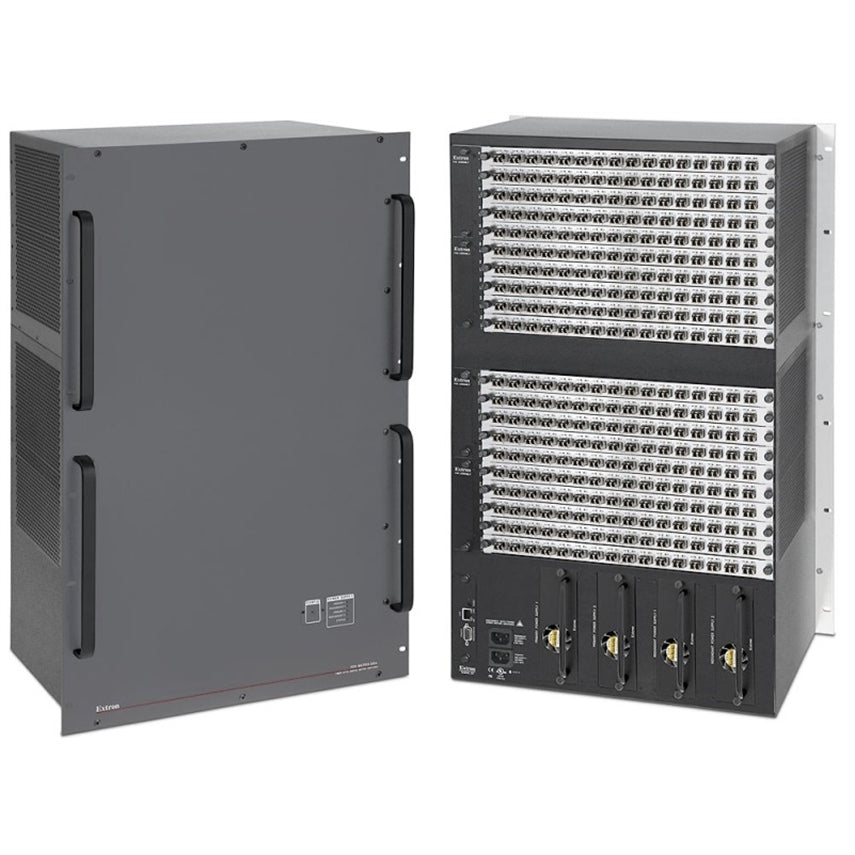

The Extron FOX Matrix 320x is a high performance, modular fiber optic matrix switcher for complete, end-to-end digital AV signal transmission and routing over fiber optic cable. The matrix switcher is expandable from 16x16 up to 320x320 and is fully compatible with the FOX Series of fiber optic transmitters and receivers. Supporting video resolutions up to 4K, it features high speed, all‑digital switching of DisplayPort, HDMI, DVI, 3G‑SDI, RGB, HD component, and standard definition video. Equipped with integrator-friendly features common to Extron matrix switchers, together with hot-swappable I/O boards and fan, real-time system monitoring, and redundant, hot-swappable power supplies, the FOX Matrix 320x delivers highly reliable, enterprise-wide switching of fiber optic AV and control for mission-critical environments. CONTAINS: 20x MMR (each has 16x FTLF8526P3BNL) 4x FAN ASSEMBLY 2x PRIMARY POWER SUPPLY 2x REDUNTANT POWER SUPPLY 1x RS232/RS422
Features:
- I/O sizes from 16x16 to 320x320
- Compatible with all Extron FOX Series transmitters and receivers
- SpeedSwitch® Technology provides exceptional switching speed for HDCP-encrypted content
- Integrates easily into a wide range of 4K environments
Whats in the Box?
Specifications:
General Information
- Model Number: FOX MATRIX 320X
- Item Dimensions - H x W x D (IN): 29.75 x 17.0 x 12.25
- Item Weight (LBS): 125
