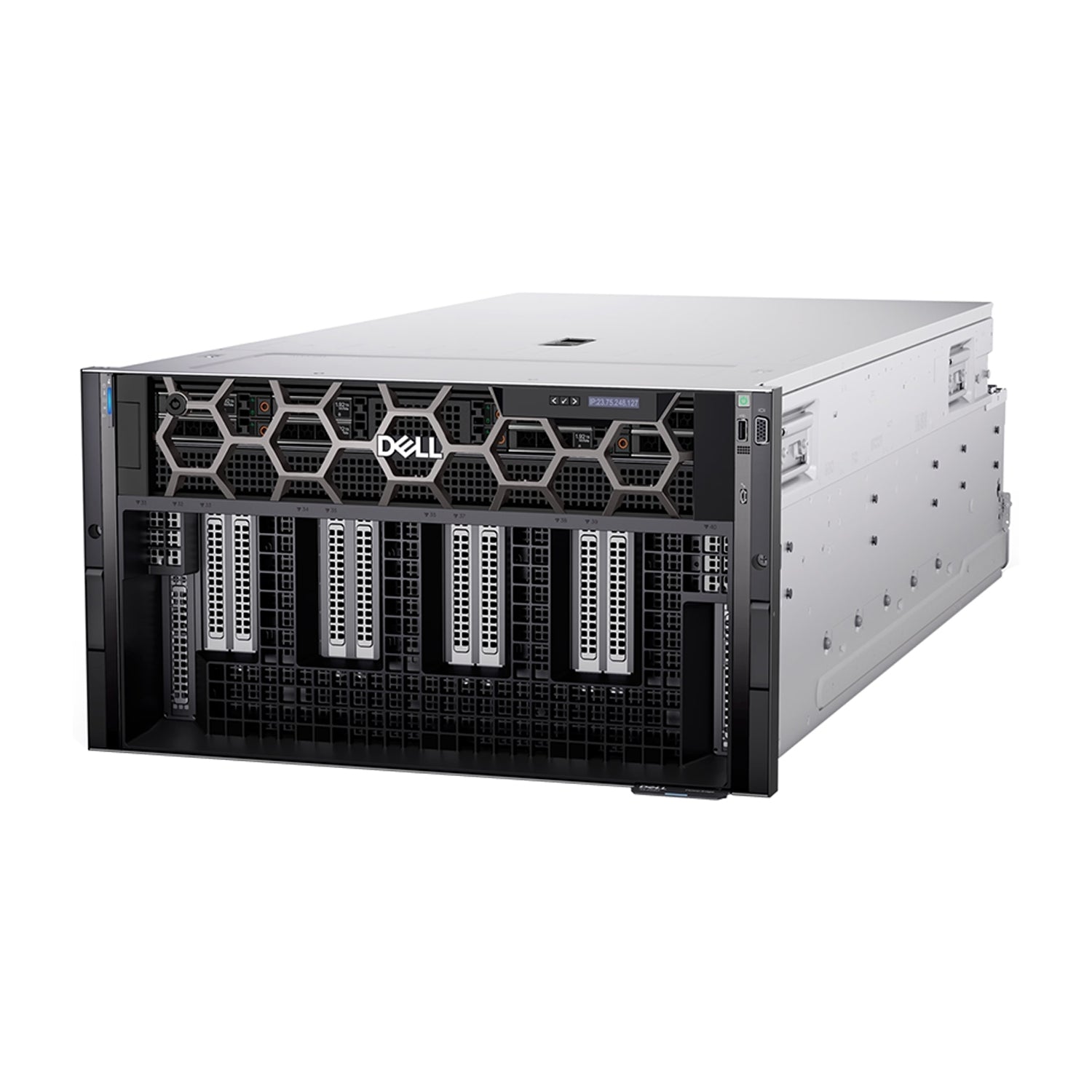

The Dell XE9680 6U server is Dell’s first 8x GPU platform. It is engineered to significantly enhance application performance by driving the most complex GenAI, Machine Learning, Deep Learning (ML/DL) and High Performance Computing workloads (HPC). This server features up to 64-core 5th generation Intel Xeon processors and offers the highest GPU memory capacity and bandwidth currently available, making it capable of managing extremely large and complex models and datasets.
Features:
- 8x NVIDIA HGX A100 8GPU SXM 80GB 500W
- 2x Intel Xeon Platinum 8740 2G, 52C/104T, 16GT/s, 105M Cache, Turbo, HT (350W) DDR5-4800
- 16x 64GB RDIMM, 4800MT/s Dual Rank
- 6x 3.2TB Enterprise NVMe Mixed Use AG Drive U.2 Gen4 with carrier
- 1x Broadcom 5720 Dual Port 1GbE Optional LOM
- 2x Broadcom 57508 Dual Port 100GbE QSFP Adapter, PCIe Full Hieght
- 8x Mellanox ConnectX-6 Single Port HDR VPI Infiniband Adapter, PCIe Full Height
Whats in the Box?
Specifications:
General Information
- Server Form Factor: Rack Mounted Server (6U)
- Memory Type: DDR5
- # of 2.5" Internal Bays: 8
- Item Dimensions - H x W x D (IN): 10.36 x 18.97 x 39.71
- Motherboard Chipset: Intel
- Maximum Memory Supported (GB): 4000
- Hard Drive Form Factor: 2.5"
- # of 3.5" External Expansion Bays: 0
- # of 5.25" External Expansion Bays: 0
- Item Weight (LBS): 251.44
- # of Internal Expansion Bays: 0
