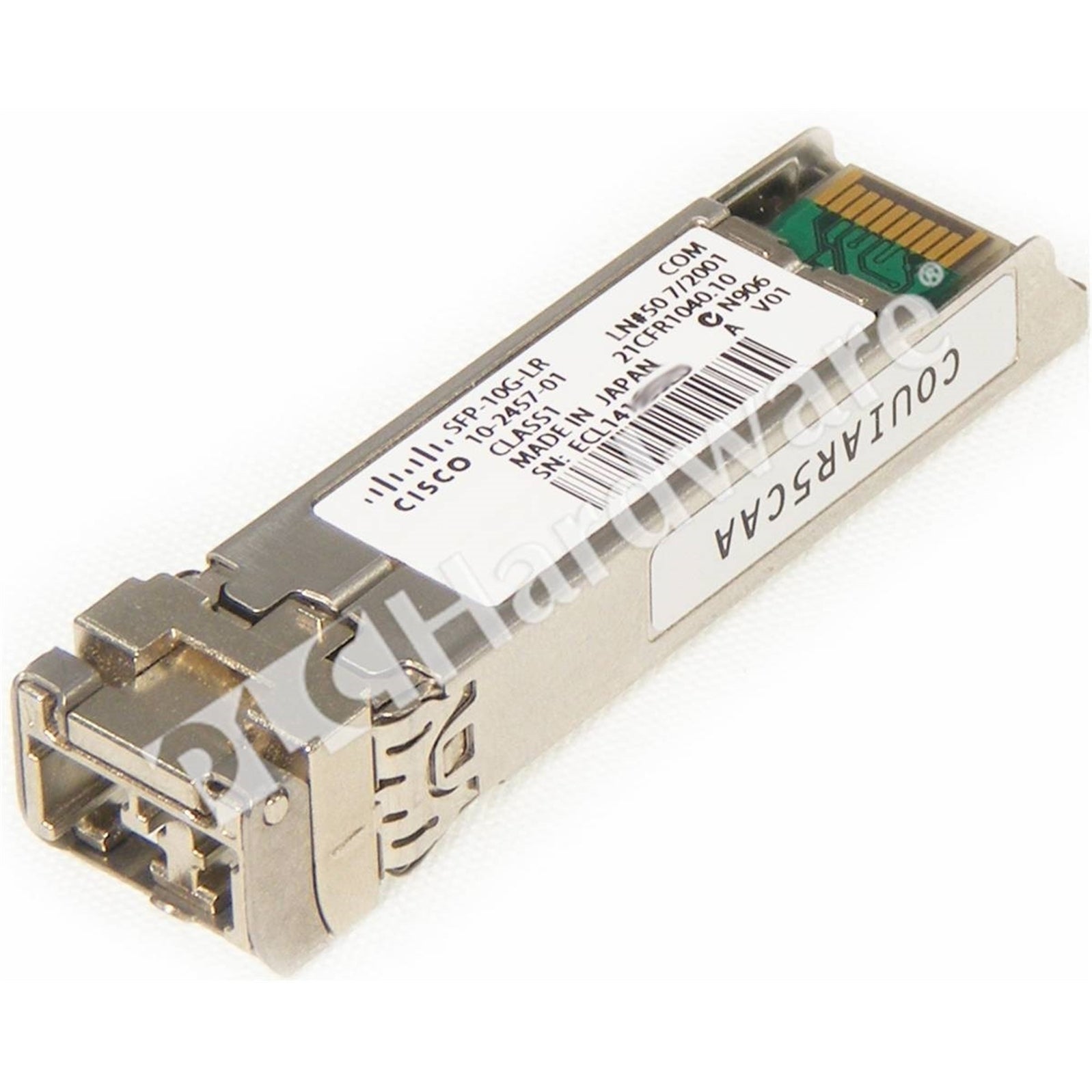

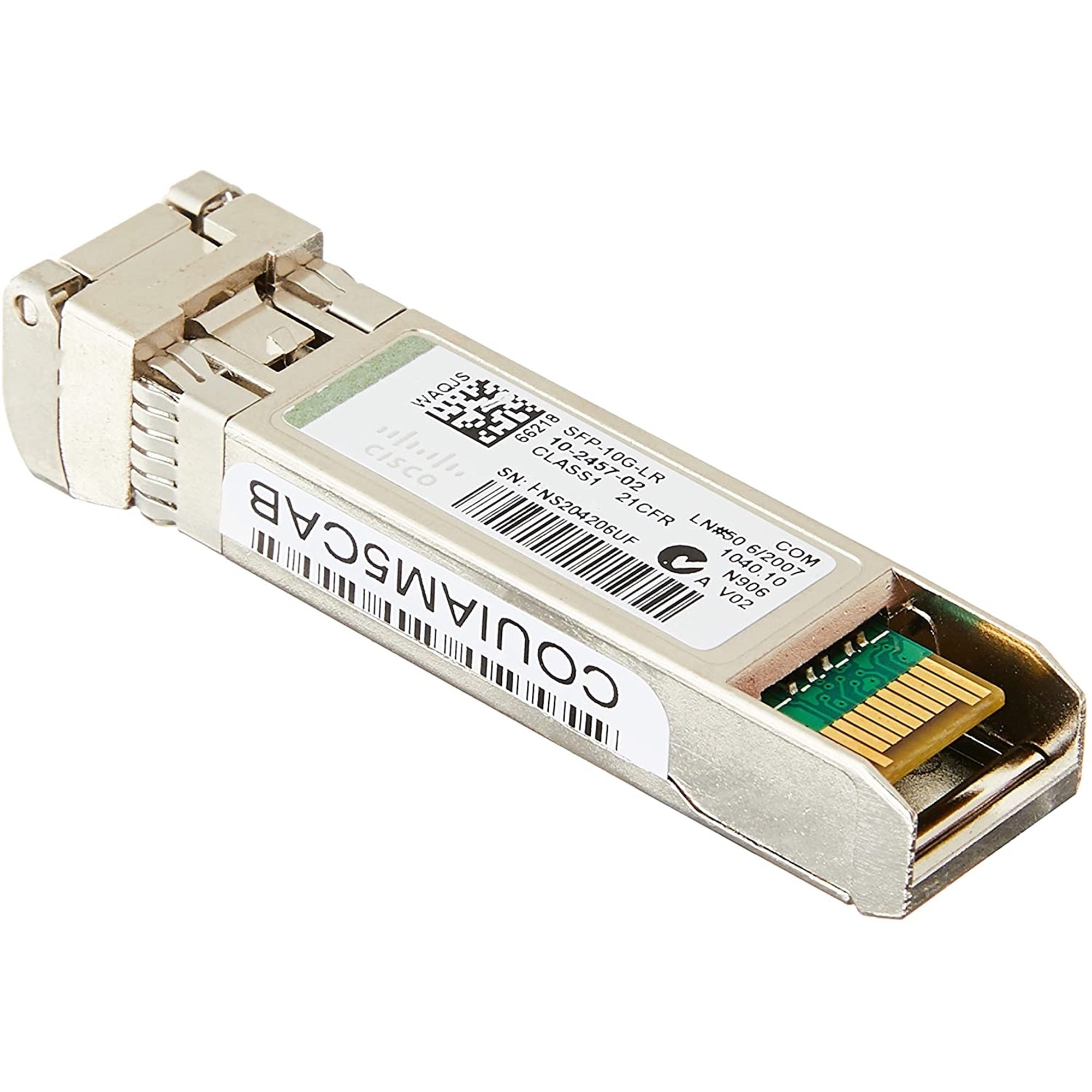

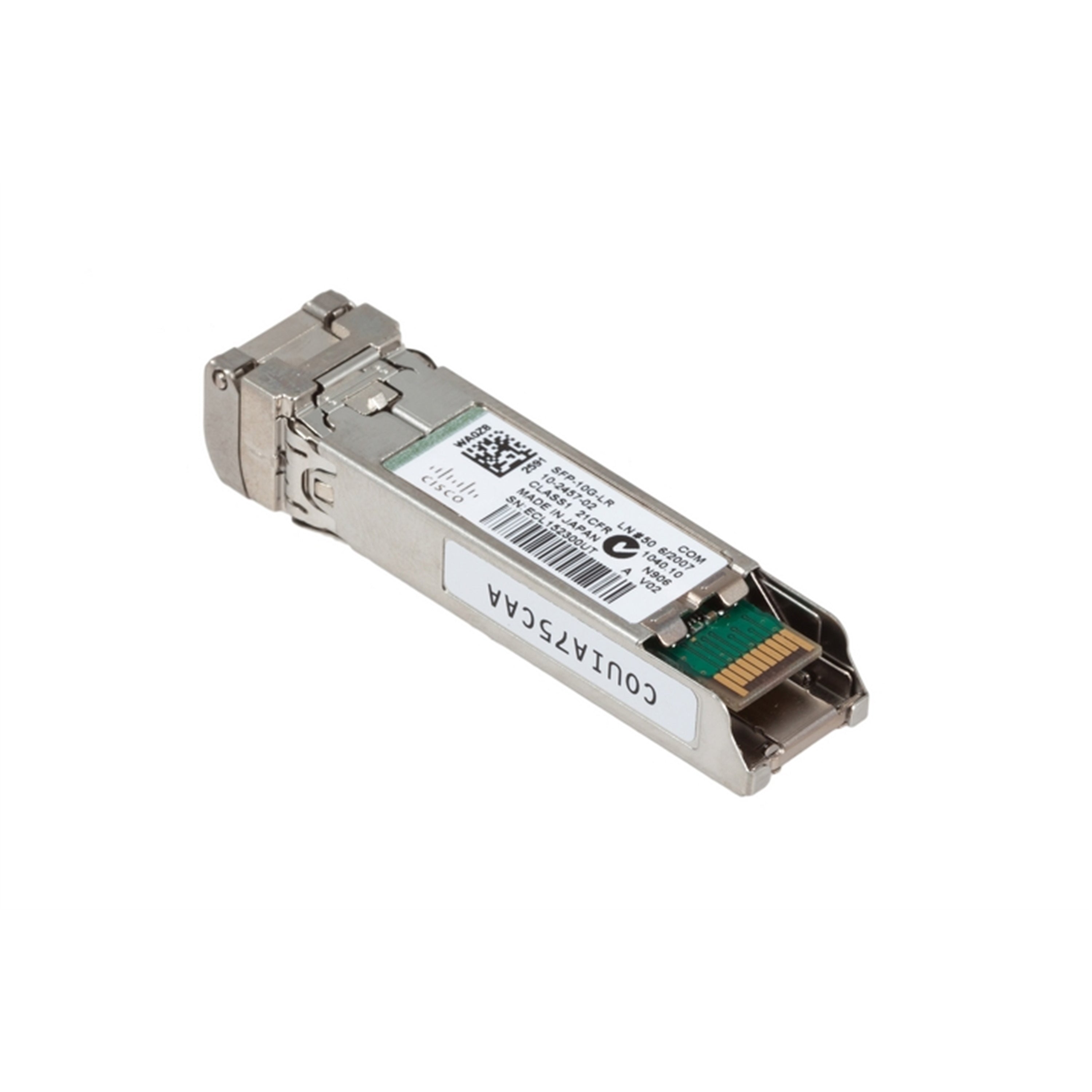

Cisco SFP-10G-LR 10GBASE-LR SFP Module

Condition
The product is out of stock
Request a quote

Inteleca is not, and does not claim to be, an authorized Distributor/Reseller of this manufacturer's products.

Product Description

The Cisco® 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber

Product Specifications

Data transfer rate (max) 10000 Mbit/s
Interface type SFP+
Fiber optic connector LC
SFP transceiver type LR
Cable type Fiber optic
Single-mode fiber (SMF) supported
Wavelength 1310 nm
Color of product Aluminium
Plug and Play
Hot-swap
Maximum transfer distance 393700.8" (10000 m)
Tx power (min) -8.2 dBmW
Tx power (max) 0.5 dBmW
Rx power (min) -14.4 dBmW
Rx power (max) 0.5 dBmW
Tx wavelength (max) 1260 nm
Rx wavelength (max) 1355 nm
Power consumption (typical) 1 W
Operating temperature (T-T) -40 - 85 °C
Width 0.528" (13.4 mm)
Depth 2.22" (56.5 mm)
Height 0.335" (8.5 mm)
Weight 2.65 oz (75 g)
