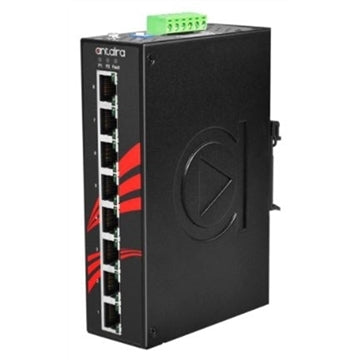

Antaira Technologies’ LNP-800AGH-24 series is an 8-port industrial gigabit PoE+ unmanaged switch that supports 8*10/100/1000Tx Ethernet ports. The LNP-800AGH-24 series is a backwards compliant PoE+ switch that will support IEEE802.3af/at standards providing a maximum of 30 watts per port with an input voltage of 12~36VDC. Antaira’s LNP-800AGH-24 series has been specifically designed for rugged and harsh environmental deployments. This product series is housed in a hardened IP30 rated metal enclosure that includes DIN-rail and wall mounting hardware. There are two wide operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an extended temperature range (EOT: -40°C to 75°C). The LNP-800AGH-24 series also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS (including on-vehicle), solar, security or any other outdoor or harsh environment.
Features:
- Store-and-Forward Switching Architecture
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port
- Supports 9.6Kbytes Jumbo Frame
- Supports Auto MDI/MDI-X Function
Whats in the Box?
Specifications:
General Information
- Number of Ports: 8
- Model Number: LNP-800AGH-24
- Item Dimensions - H x W x D (IN): 1.6 x 5.69 x 3.74
- Airflow: N/A
- Power Source Type: DC
- Item Weight (LBS): 0.86
