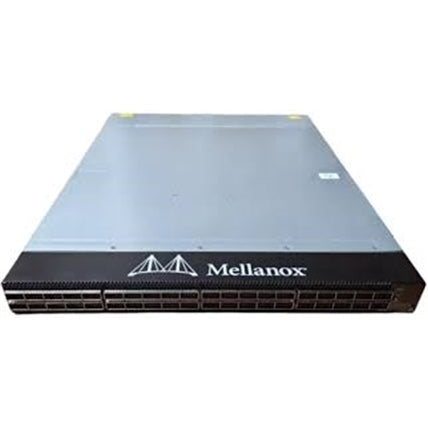

Built with the Mellanox Quantum InfiniBand switch device, the QM8790 provides up to forty 200Gb/s ports, with full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters. QM8790 is the world’s smartest network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)™ technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware, resulting in an order of magnitude application performance improvements. QM8790 enables efficient computing with features such as static routing, adaptive routing, congestion control and enhanced VL mapping to enable modern topologies (SlimFly, Dragonfly+, 6DT). These ensure the maximum effective fabric bandwidth by eliminating congestion hot spots. The QM8790 switch has best-in-class design to support low power consumption. Power is further reduced upon partial port utilization.
Features:
- Industry-leading switch platform in performance, power, and density
- Designed for energy and cost savings
- Collective communication acceleration
- Maximizes performance by removing fabric congestions
Whats in the Box?
Specifications:
General Information
- Number of Ports: 40
- Model Number: MQM8790-HS2F
- Item Dimensions - H x W x D (IN): 1.7 x 17.0 x 23.2
- Airflow: AFO (Front to Back)
- Power Source Type: AC
- Item Weight (LBS): 12.48
